Installation is so simple with all parts supplied; all you need is a spanner! The water diverter allows you to turn on the Handspray with just a turn of a dial. It has been specially designed with a unique safety feature to ensure the user always turns it off, requiring the dial to be in a downward position to operate the Handspray.

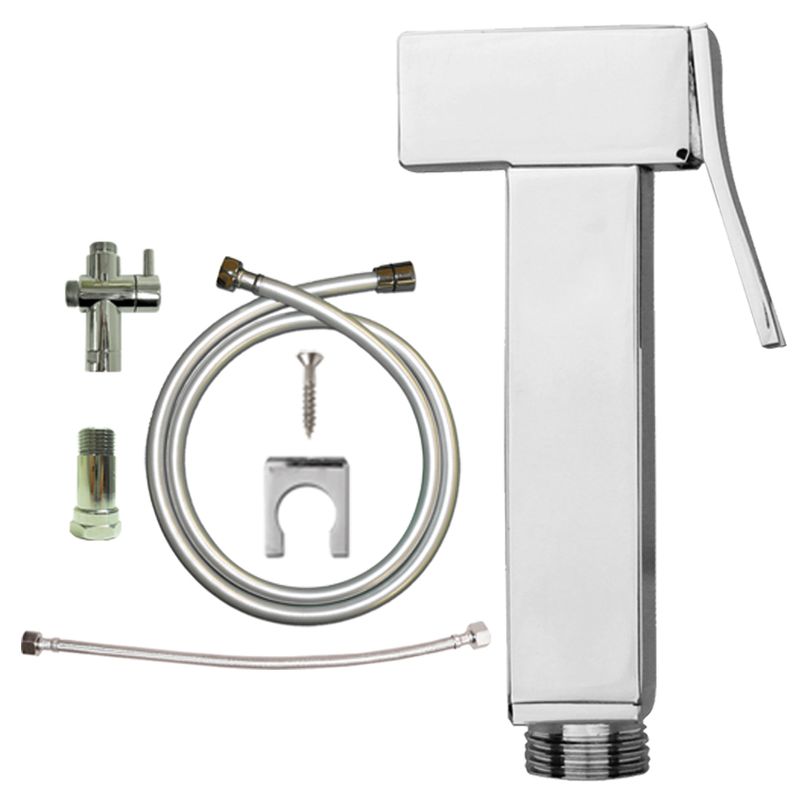

Key Features
- Handspray
- High Pressure 1500KPA Hose
- Handspray Wall Holder
- Screw
- Dual Check / Back Flow Valve
- Water Diverter
- Braided Hose
Additional Information
The flexible hose supplied was specifically manufactured with deep dish nuts to allow for easy installation and help prevent cross threading. The unique cone shaped washer enables the installation process to be quick and simple, eliminating the need for plumber's tape. The backflow device provided is small and of the highest quality. Most dual check valves are only tested to 700KPA, but the dual check valve supplied holds a safety rating of 1200KPA.
If you live in a high pressure water area, then you will require a pressure restrictor. Most pressure limiting valves are large and bulky, but the optional pressure restrictor available for purchase has a slimline design. Discuss with your plumber about your water pressure to determine if this valve is required.
Specifications
Warranty: Full Manufacturer’s Warranty - 12 Months
NOTE: Handsprays shall be installed in accordance with The National Construction Code – Volume Three. If used as a douche spray, it will be classified as a High Hazard device and appropriate additional backflow prevention will be required.
For use as a bidet spray, a RPZD that complies with AS/NZS 2845.1 or AS 2845.2 needs to be installed for the application to comply with AS/NZS 3500.1 Water Services Clause 12.2.3.

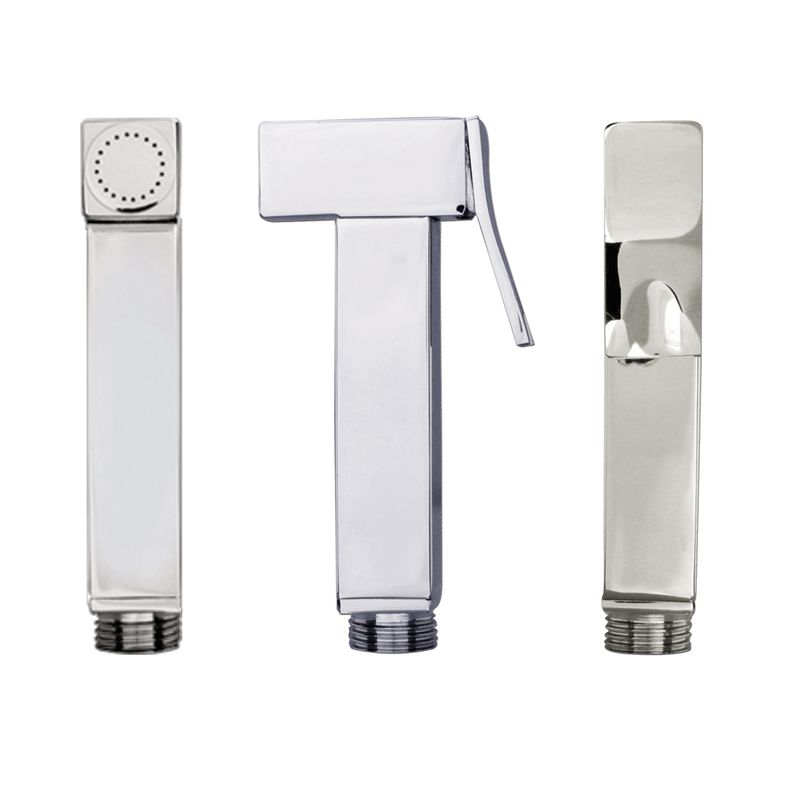

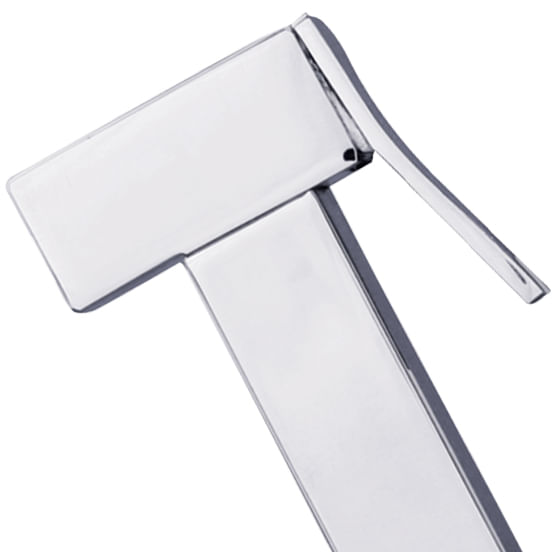

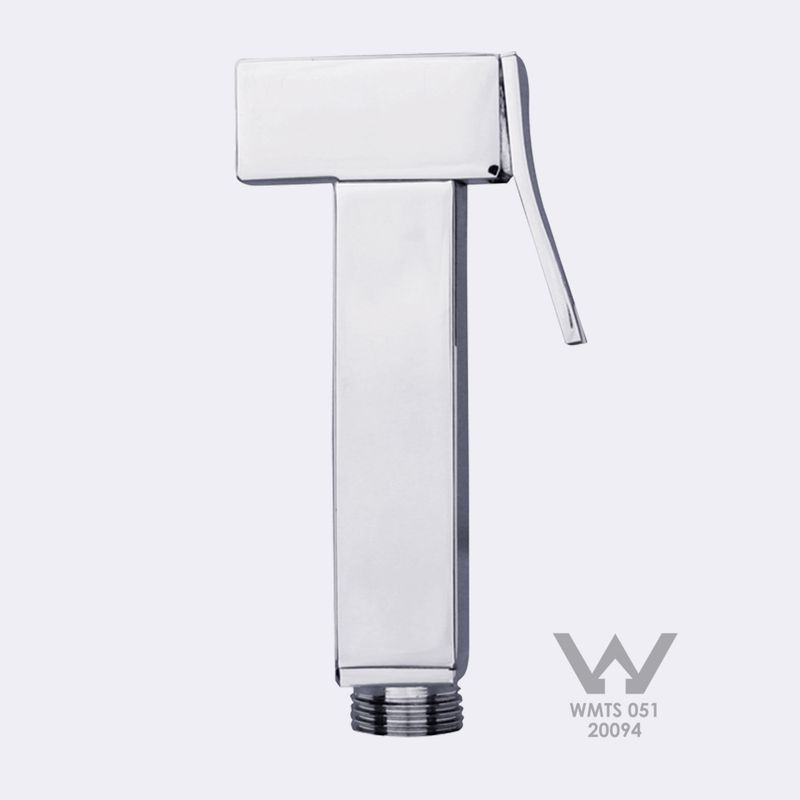

The Modern Handspray has a sleek & modern, square design. It is made of high quality chrome plated brass. It has an easy to use trigger for all ages.
