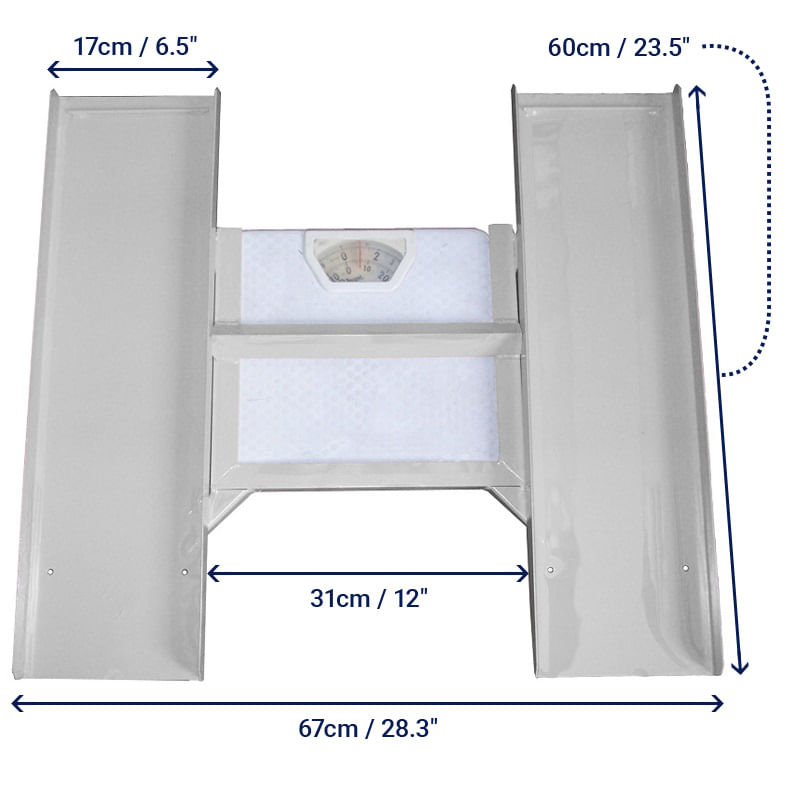

The Handi Weigh Ramp is made from 604 Grade stainless steel, for rust prevention. It is designed to fit most bathroom scales and strips of protective foam under the Ramp make it safe for use with glass scales. Please refer to the diagram to ensure your scales are a suitable height and width for use with the Handi Weigh Ramp.
Key Features
There are three methods of weighing:
- Place the Ramp centrally on the scales. Make sure the Back Stop Bracket is positioned along the back edge of the scales. Then put an empty wheelchair on the ramp. The scales can then be reset at zero so when weighing someone, the scales will only indicate the person's weight.
- Note the total weight of the Handi Weigh Ramp and an empty wheelchair and when weighing someone deduct this weight from the total indicated. The weight can be written discreetly on the chair for future weighing. This method may be used in a hospital where many different makes of wheelchair are in use.
- Place the Handi Weigh Ramp on the scales and reset the scales to zero. Weigh the empty wheelchairs and note their weight discreetly on the back of the wheelchairs. When weighing a patient simply deduct the recorded weight of the chair and Ramp from the total.
Additional Information
When pushing the wheelchair towards the Handi Weigh Ramp, once the front wheels touch the ramp, it will tilt up. Continue pushing but use your foot on the tilt bar under the wheelchair as well as pushing with your hands, until the wheelchair is positioned on the ramp. Stop pushing when the front wheels are against the two Stop Bars welded onto the front of the ramp.
Warning: APPLY BRAKES - DO NOT LEAVE PATIENTS UNATTENDED WHEN ON SCALES. Read the weight from the scale. Sometimes it is easier to see the dial from behind the patient by looking under the chair. After weighing release the brakes, and either continue moving forward or reverse off the scales. Before weighing the next patient, ensure the Handi-Weigh is correctly positioned on the scales.
Consult your Physiotherapist, Occupational Therapist or Back Care Specialist when using Manual Handling Products.
Specifications
Item #: 285
Safe Working Load (SWL): 125kg / 275lbs, Factory Tested To 200kg / 440kg
Item Weight: 7kg / 15.5lbs
Cleaning
Wipe clean with a hospital grade disinfectant. Wipe dry. Ensure the product is dry before using or storing.
Unit of Measure
Each
