Hikvision - DS-PDP15P-EG2-WB - AX Pro Wireless Pir Detector

HikVision AX Pro Alarm Product Info + Key Benefits

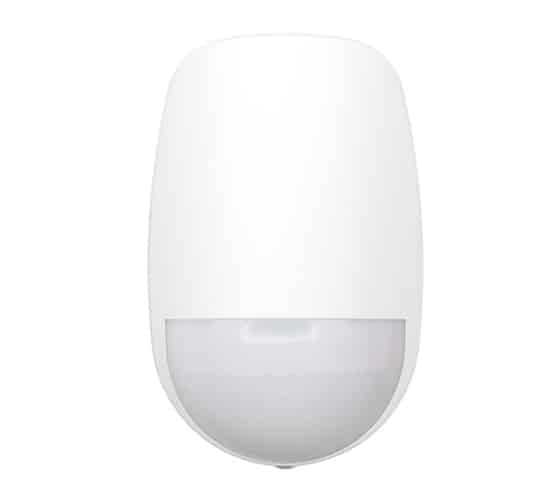

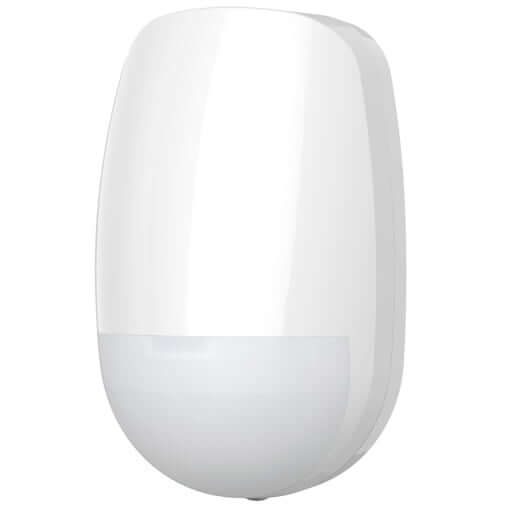

Hikvision internal PIR detector

Hikvision internal PIR detector is intended for indoor installation in locations such as living rooms, kitchens, hallways, bedrooms or for use in office buildings.

The PIR detector has the model number DS-PDP15P-EG2-WB and is a fully secured wireless two-way detector with motion detection, tamper protection, low battery control and connection control. It can operate for up to 5 years from a built-in battery. It ignores animals while recognizing humans from the first step.

Detection range of the DS-PDP15P-EG2-WE

The Hikvision internal PIR detector can monitor an area of 15 metres from the sensor for movement at an angle of 85.9 degrees. If you place the detector in the corner of a room, the entire room will be secured.

The sensor divides the area into 52 zones and gives an alarm if 1 or more zones detect movement. This sensitivity is adjustable via the Hik-Connect application on your smartphone. There are a total of 3 settings, high sensitivity, normal and animal friendly. The latter must be selected if cats or dogs are present in the area to be protected. Pets up to 30KG are not detected in this mode.

Range from the Hikvision Hub

The range from the Hub to the Hikvision internal PIR detector DS-PDP15P-EG2-WB is 1,600 metres in open field. The connection is continuously monitored by the Hikvision Cloud. If the wireless signal is intentionally disturbed it will be immediately reported via the Hik-Connect app on your smartphone. The wireless Hikvision signal is called Tri-X, and operates on 2 different frequencies in the 868mhz band and has AES-128 encryption.

Installation height

The ideal height for mounting the internal PIR detector is between 1.80 metres and 2.40 metres. If you have pets, we recommend a height of at least 2 metres. At this height a dog of maximum 30 kilograms can walk around freely without triggering the alarm. If you mount the PIR lower than the recommended height, it will react more quickly to pets and also reduces the detection distance of 15 metres. Of course all installation supplies are included.

Login and assembly

All Hikvision products are easy to connect. Registration is done with a QR code on each device. Put the Hik-Connect app in the “Enroll” position and you can start adding products by scanning the QR code in the app.

Mount the detector on a wall without disassembling it. Make sure there are no vases, cabinets or glass objects blocking the angle of view. And you’re done. Don’t forget that the ideal location for this internal PIR detector is in the corners of your home. Thanks to its detection angle, it can secure an entire room at this location.

Settings of the Hikvision internal PIR detector

In addition to setting the sensitivity, you can make a number of other adjustments. For example, you can choose to use the detector as a bell function. As soon as someone walks into the room you will hear a bell on your phone. This doorbell function seems more like something for shopkeepers or to use at a door contact, so you will be informed when someone comes to your home, for example the children coming from school.

In addition, you can indicate when the detector should detect. Only if you switch on the alarm system, or for example permanently if you mount it in a room that needs to be permanently monitored, such as a safe room.

Battery powered

The detector, like all Hikvision products of the AX Pro alarm system, runs on batteries of type CR123A and is therefore completely wireless. They are therefore easy to place anywhere without having to lay cables. The service life of the batteries supplied as standard is 5 years under normal use. After this time, they can easily be replaced for new ones for a few euros. These batteries are always available from stock. How to replace the batteries can be found in the manual of the internal PIR detector DS-PDP15P-EG2-WB.

The internal PIR works in temperatures between -10 and +55 degrees Celsius. Outside these values the detection quality can decrease. The dimensions are 65.5mm x 103mm x 48.5mm and the weight is 128 grams.

Alternatives

• DS-PDD12P-EG2-WB Wireless Dual-Tech Detector:
  It has an additional RADAR sensor to verify a detection received via PIR. PIR stands for passive infrared, and means that detection takes place on the basis of heat differences in the room. People cause such a difference, but air conditioners and fireplaces can also cause it. To prevent false alarms, you can alternatively choose a motion detector with a built-in radar module so that detected heat differences can be checked with radar. If the radar image detects a similar movement, an alarm will only be generated.
• DS-PDC15-EG2-WB Wireless PIR Curtain Detector:
  It has an extra narrow detection angle of 6.3 degrees to secure very specific locations. Ideal to place in shops with activated doorbell function, for example, so you can hear immediately when someone walks into the shop. But it can also be used as security directly along windows or doors. For example, with an activated alarm you can still walk around in the room, and an alarm will only sound when you get very close to the window or door.
• DS-PDPG12P-EG2-WB Wireless PIR Glass Fracture Detector:
  It has extra microphones to check for glass tinkling. This means that an alarm will sound sooner when the glass is broken than when only motion detection is used.
