ResQmat

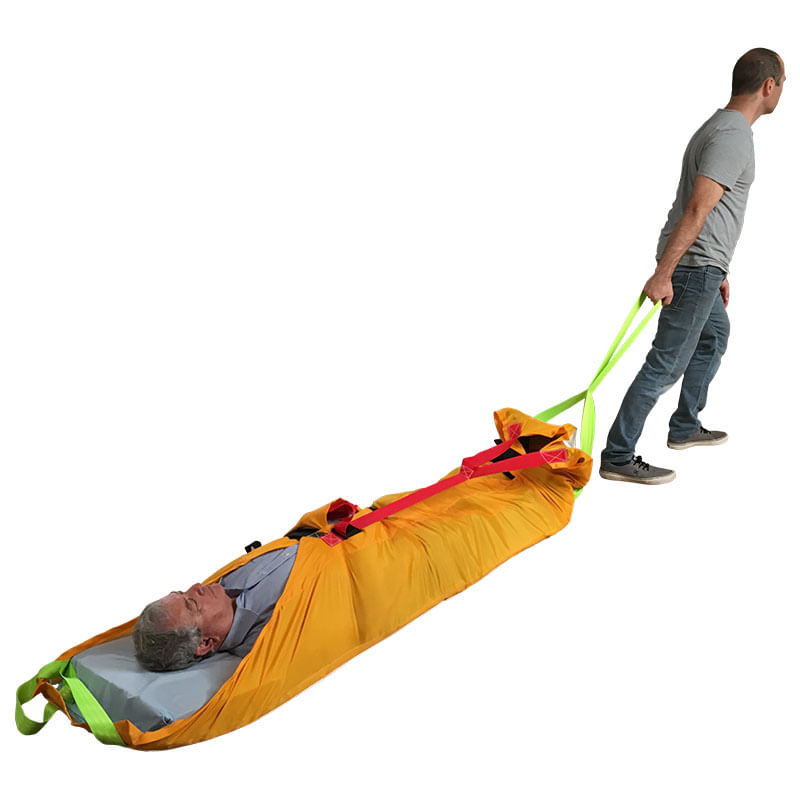

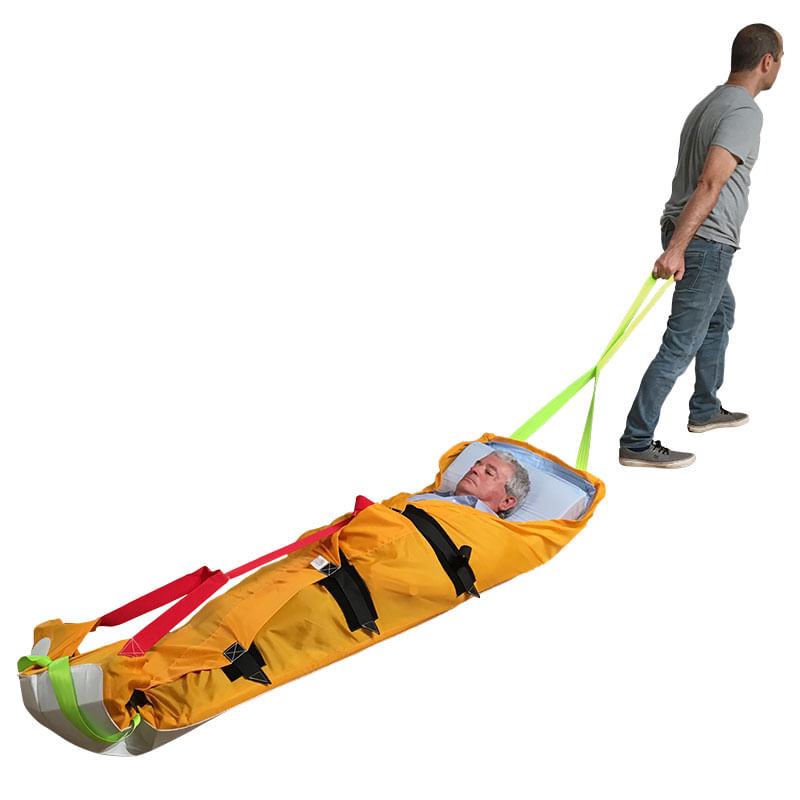

The ResQmat is an evacuation mat, designed to safely evacuate and rescue a non-ambulant person from a building in an emergency situation. The Evacuee may be in a wheelchair or they may not be able to walk down stairs, if the lifts are not available due to fire or an electrical failure. The ResQmat is a bright yellow/gold colour with bright green Pulling Straps to stand out in poor light conditions. The yellow Storage Bag and Pulling Straps have some Hi Vis Tape made to Australian Standard 906.4.

Key Features

• Completely encloses the legs and arms. This prevents people from reaching out whilst being rescued, and possibly impeding the rescue.
• Strong, thick Hook & Loop Tape straps.
• Padded head pillow protects the head when going down stairs.
• Full length mini mattress protects the body when going down stairs.
• Automatically fits to size.

Additional Information

Many fires start at night. If the electricity is turned off, Rescuers need to find the ResQmat in poor light. Outside of the building, the bright colours and reflective tape will help the outside Rescuers see the ResQmat coming. This allows them to assist evacuation away from the building.

In any building over two storeys high, if there is a power failure or a fire, the electricity is turned off and the lifts or elevators then cannot be used. It is difficult and probably impossible, for people in wheelchairs or using Zimmer Frames or walking sticks, to walk down stairs. The ResQmat can be used in office buildings, theatres, libraries, hospitals, schools, etc. Even if a wheelchair user does not work in the building, a visitor who does use a wheelchair may be in the building when there is a power failure or fire, and they will not be able to use the stairs to evacuate. When not in use, the ResQmat can hang from a hook or be stored in a cupboard, ready to use when an evacuation mat is necessary.

It is important that all staff have manual handling training in using the ResQmat, so they will know how to use it in an emergency. When training, it may be better to stop the training by the escape door, because if the ResQmat is dragged across a driveway, the bottom surface may be scratched beyond repair. Proposed escape routes should be trialed for evacuation in different directions depending on where the fire may start. It may be necessary to move some furniture to allow more room to move.

Specifications

Item #: 220P

Safe Working Load (SWL): 300kg / 660lbs (Lifting using all straps)

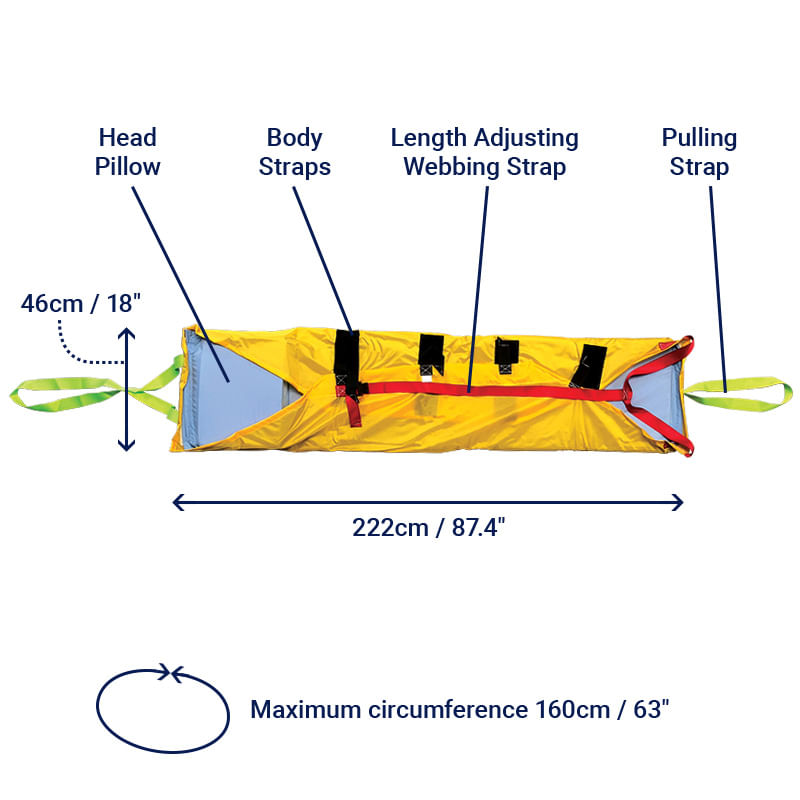

Size:

• Height: Fits people 136cm to 192cm (54" to 76")
• Width: Fits people to a maximum of 160cm (63") circumference

Note: There is no Standard for this product, therefore we have adopted the testing requirements as set out in International Standard ISO 10535:2011: Hoists for the transfer of disabled persons - Requirements and test methods. This Standard covers testing for mechanical lifting hoists and associated lifting slings. It includes a method for obtaining a SWL for a lifting sling which lifts a person’s entire weight, which Pelican’s range of slings adhere to. We use the same materials, thread and method of stitching our slings, as we do for the ResQ products. Because people’s weight and size may be distributed differently between the chest, stomach and legs, it may be possible that the Cross Straps do not fit some bariatric people. If possible, we recommend this is tested before an emergency occurs. If this is the case, please contact us as we can supply extension Cross Straps.

Recommendations

The ResQmat is slippery. Do not step into or stand on it. Keep it away from children. Have regular training from a Manual Handling Advisor on how to use the ResQmat as part of the emergency evacuation education. After training, with someone already on the floor, it should take about 1 minute 25 seconds to start pulling them to safety.

Note for Trainers: This product may not be suitable for use on some circular staircases. Ensure all doorways are wide enough to allow this product to pass through. Allow caution when turning corners fast as a high lateral force may make the product roll over, although we are not aware of this ever happening. If evacuating a large bariatric person, it may be necessary to have more than one person pulling. It is good to have the total weight of the people pulling, near to or equal to the weight of the evacuee. Also using the Extension Straps (sold separately), will lengthen the Pulling Straps so more people can hold the straps without being too close to each other. Remember more Rescuers will be needed to hold the weight back when descending stairs.

General Manual Handling Warning: Manual Handling products are designed to assist carers to help patients. They will not make the carer stronger or fitter, but with correct training and use of the products, should make manual handling easier and safer for both staff and patients. When training, practise with an able-bodied colleague. If any procedure is not comfortable or is difficult and puts the carer or patient in a dangerous position, the participants should call out to stop the manoeuvre, recover and recommence. Never jeopardise your health by straining, twisting or being incorrectly positioned when manual handling. Always select the most appropriate equipment for the patient’s current condition and if in doubt, use mechanical equipment. Ask your Manual Handling adviser for individual guidance.

Correct Buckle Threading: It is vital that the buckles on this product are correctly fitted. Contact us if you need to order a replacement buckle if one is broken.

Maintenance

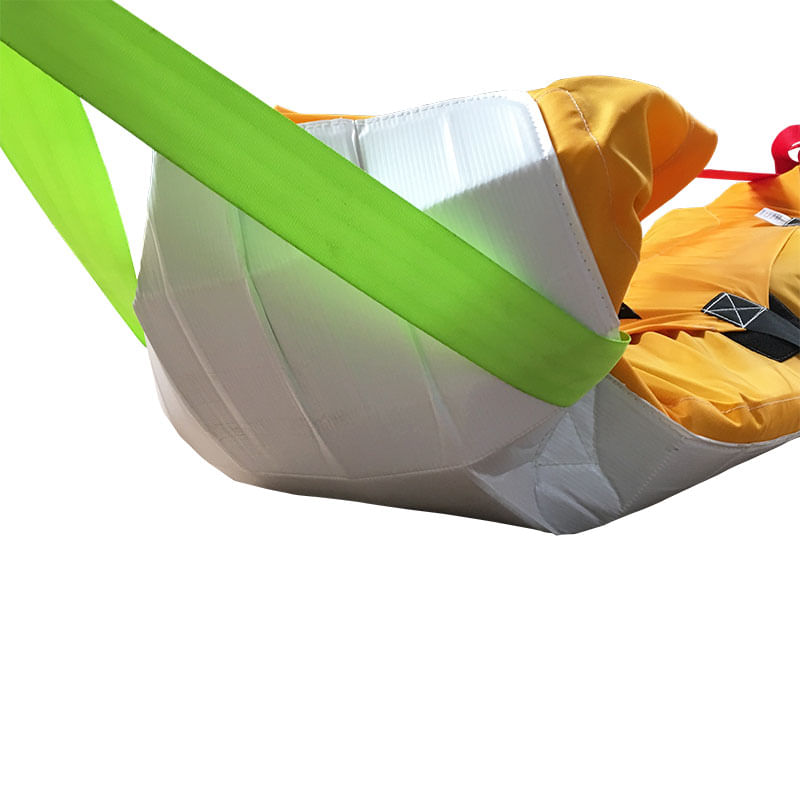

We recommend an annual inspection to ensure vermin have not caused any damage. The direction of the corrugations on the plastic board means that it is not necessary to unroll it every few months.

Cleaning & Storage: Keep away from direct UV rays. Keep in a clean and dry environment. Do not subject to extreme temperatures or environment changes. Wipe clean with a hospital grade disinfectant. The foam pillow can be separated from the ResQmat. Remove the pillow and mattress foam and wash in a tub. Squeeze to remove excess water and air dry in the shade. Without the foam, the product can be washed up to 80°C (176°F). Air dry before use and storage. Inspect after cleaning, and report any concerns or damage that may affect use in an emergency and then withdraw from service and seek advice. Normally only a ResQmat that is used for staff training may need cleaning if it is soiled during an exercise. If the ResQmat is used in an emergency, the replacement cost should be covered in an insurance claim.

Annual Inspection: Inspect the product once a year and more frequently if the storage place or conditions may affect the product. Open bag, remove and open the ResQmat to full length. Check the condition of all parts and materials. Report to management any concerns or damage which may affect use in an emergency and withdraw from service and seek advice. Maintain records of inspection and findings.

Unit of Measure

Each
