ResQsheet for Trolley Beds

The ResQsheet for Trolley Beds is designed for the emergency evacuation of non-ambulant patients. It is specially crafted to fit narrow trolley beds, ensuring safety and ease during evacuations. With long pulling straps sewn halfway down the length, it allows for multiple rescuers to assist effectively. The Cross Straps are securely sewn across the material for added strength, particularly useful on rough surfaces.

Key Features

• Emergency Evacuation: Specifically designed for non-ambulant patients.
• Narrow Design: Tailored for use with narrow trolley beds.

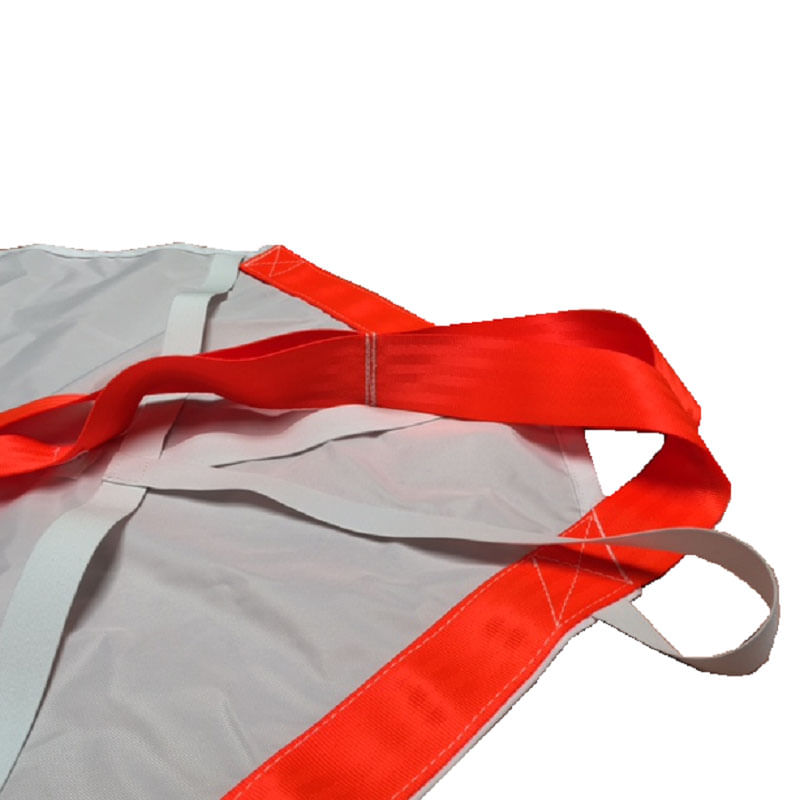

• Long Pulling Straps: Sewn halfway down the length for more rescuers.
• Press Studs & Pockets: Help contain the Cross Straps and prevent tangling.
• Plastic Buckles: Safer than metal when detached under strain.
• Cross Straps: Sewn across for extra strength, ideal for sliding on rough surfaces.

Additional Information

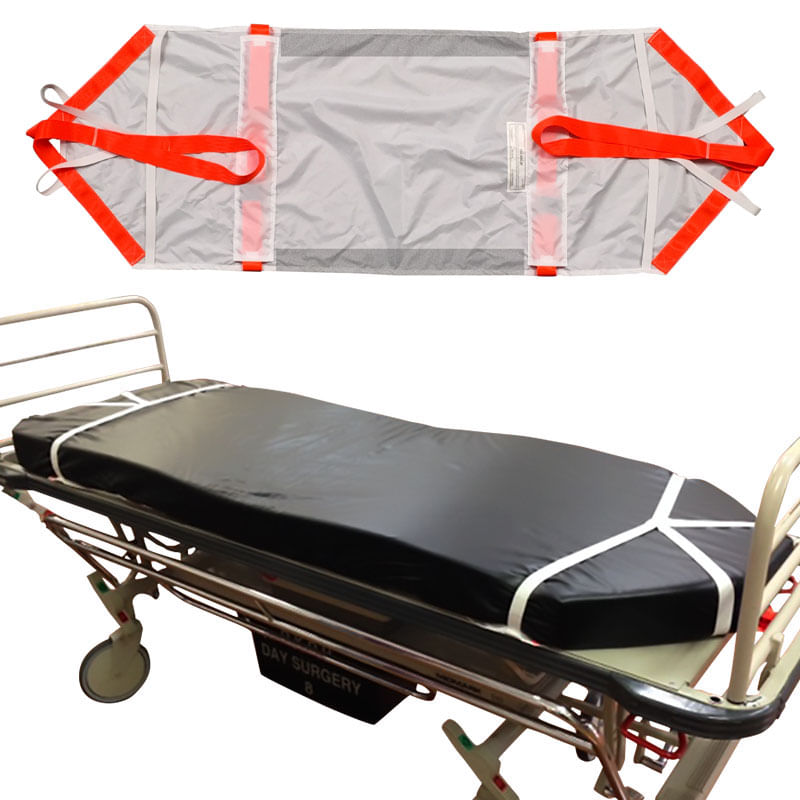

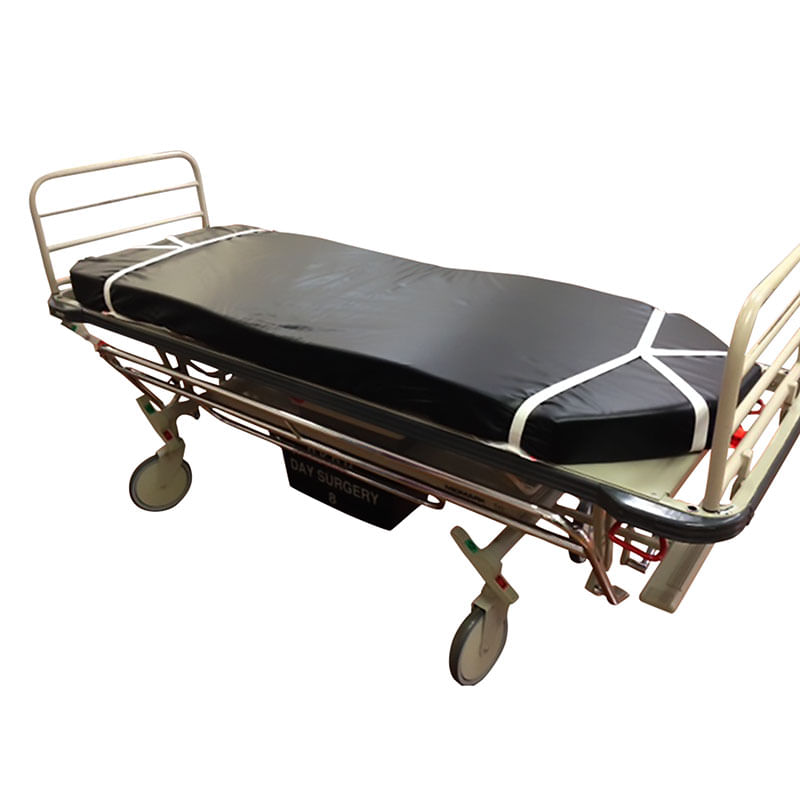

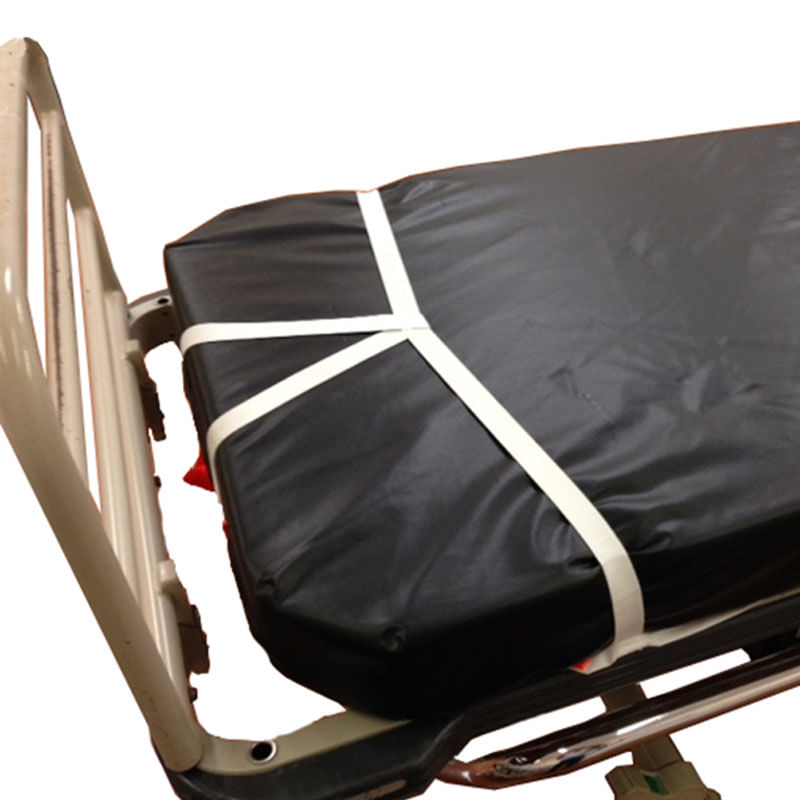

Narrow Trolley Beds are commonly used in hospitals, particularly in Emergency Departments and Day Wards. Standard size ResQsheet (92cm / 36" wide) does not fit correctly due to the narrower width of trolley beds, which can lead to dangerous situations if the ResQsheet wraps around the mattress. The Trolley Bed mattress should ideally have a non-slip material, but lightweight mattresses can easily move or slip. Pelican suggests using the Anti Slide Mattress Pad to prevent slipping when patients are seated on the side of the bed.

Specifications

Item #: 220T

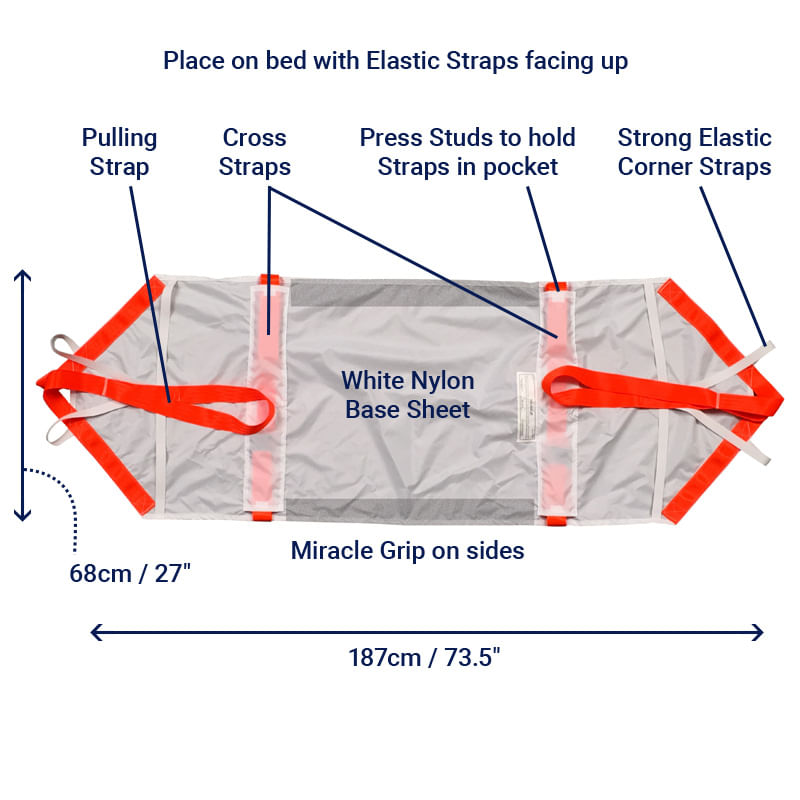

Size: 187cm x 68cm (74" x 27")
Safe Working Load (SWL): 300kg / 660lbs
Note: There is no Standard for this product, therefore we have adopted the testing requirements as set out in International Standard ISO 10535:2011: Hoists for the transfer of disabled persons - Requirements and test methods. This Standard covers testing for mechanical lifting hoists and associated lifting slings. It includes a method for obtaining a SWL for a lifting sling which lifts a person’s entire weight, which Pelican’s range of slings adhere to. We use the same materials, thread and method of stitching our slings, as we do for the ResQ products. An important difference is that the ResQ products are designed to be slid, not lifted, so the SWL stated above could theoretically be increased. Because people’s weight and size may be distributed differently between the chest, stomach and legs, it may be possible that the Cross Straps do not fit some bariatric people. If possible, we recommend this is tested before an emergency occurs. If this is the case, please contact us as we may be able to supply extension Cross Straps.

Cleaning

Wash up to 80°C (176°F). Air dry in the shade, or tumble dry on a cool setting, ensuring the drum is cool. Ensure the product is dry before using or storing.

Important

Note for Trainers: This product may not be suitable for use on some circular staircases. Ensure all doorways are wide enough to allow this product to pass through. Allow caution when turning corners fast as a high lateral force may make the product roll over, although we are not aware of this ever happening. If evacuating a large bariatric person, it may be necessary to have more than one person pulling. It is good to have the total weight of the people pulling, near to or equal to the weight of the evacuee. Also using the Pelican Extension Straps, Item 220E will lengthen the Pulling Straps so more people can hold the straps without being too close to each other. Remember more rescuers will be needed to hold the weight back when descending stairs.

General Manual Handling Warning: Manual Handling products are designed to assist carers to help patients. They will not make the carer stronger or fitter, but with correct training and use of the products, should make manual handling easier and safer for both staff and patients. When training, practise with an able-bodied colleague. If any procedure is not comfortable or is difficult and puts the carer or patient in a dangerous position, the participants should call out to stop the manoeuvre, recover and recommence. Never jeopardise your health by straining, twisting or being incorrectly positioned when manual handling. Always select the most appropriate equipment for the patient’s current condition and if in doubt, use mechanical equipment. Ask your Manual Handling adviser for individual guidance.

Correct Buckle Threading: It is vital that the buckles on this product are correctly fitted. Contact us if you need to order a replacement buckle if one is broken.

Product Options

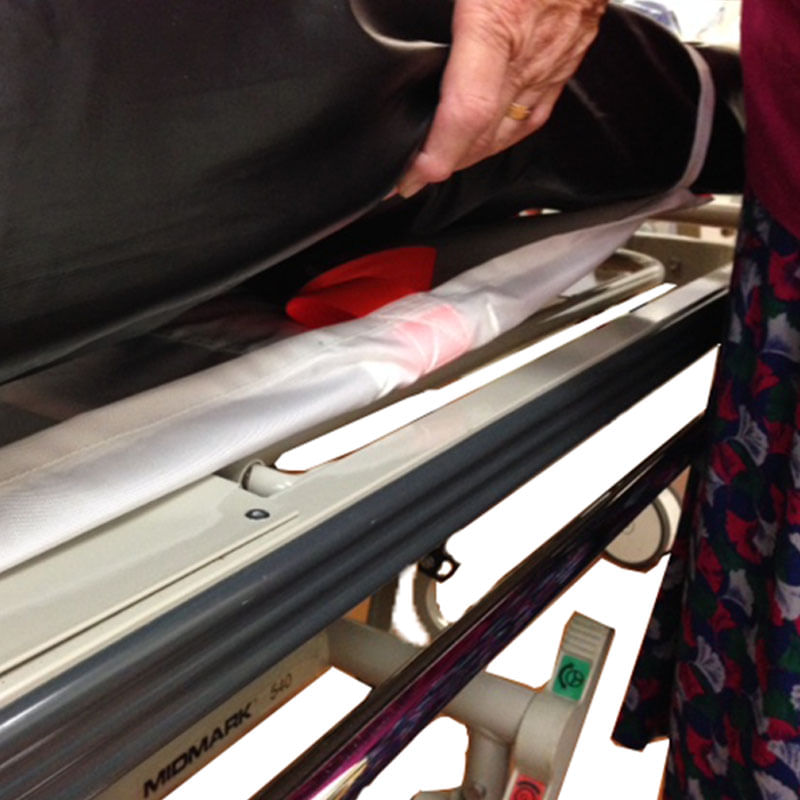

	ResQsheet	Stored under the Patient's mattress on the bed and is ready to use, with the Patient then evacuated with their mattress. Slides well on most vinyl floors.
	ResQsheet for Vinyl & Carpet	Same as the ResQsheet above, but with a built-in white plastic slide board underneath. Slides well on all floor surfaces including Vinyl & Carpet.
	ResQsheet for Vinyl & Carpet - Deep & Airflow	A special version of our ResQsheet for Vinyl & Carpet, made to fit deep mattress beds, and can also be used with pressure care air-flow mattresses.
	ResQme	This is kept in storage and taken to a Patient who needs to be evacuated. A budget option evacuation device.
	ResQpod	Same as the ResQme above, but with more Cross Straps to contain the Patient.
	ResQmat	Same as the ResQme and ResQpod above, but with a built-in mini-mattress for comfort, and the side material can enclose the Patient.
	ResQslide Board & Chair Strap Kit	The ResQslide Board & Chair Strap Kit is used to slide someone from a wheelchair to an evacuation device on the floor, such as the ResQmat, ResQpod or ResQme which can slide down stairs.
