RPH Keyhole Dex Sling

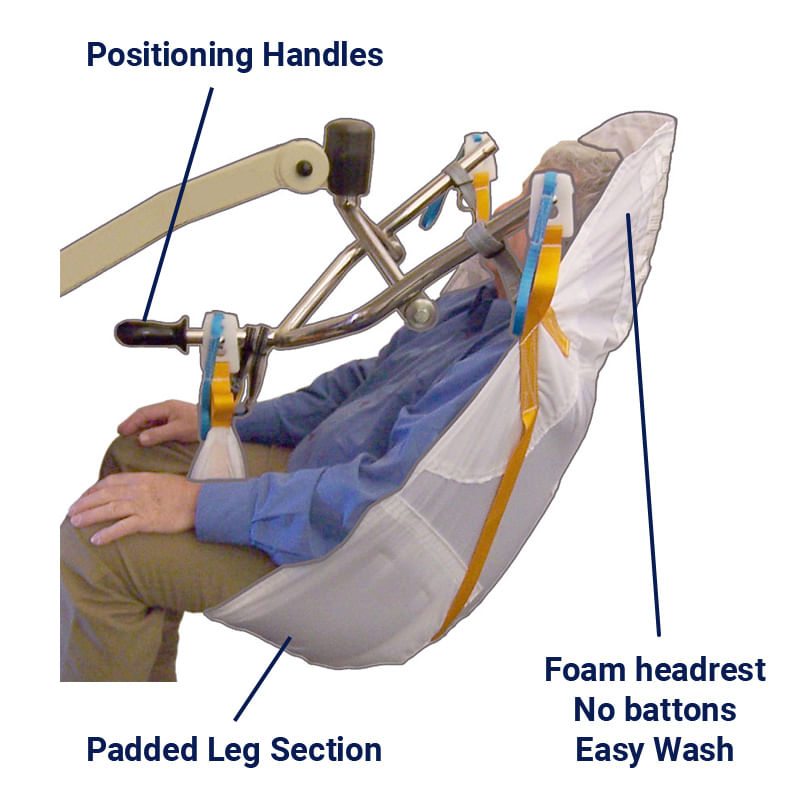

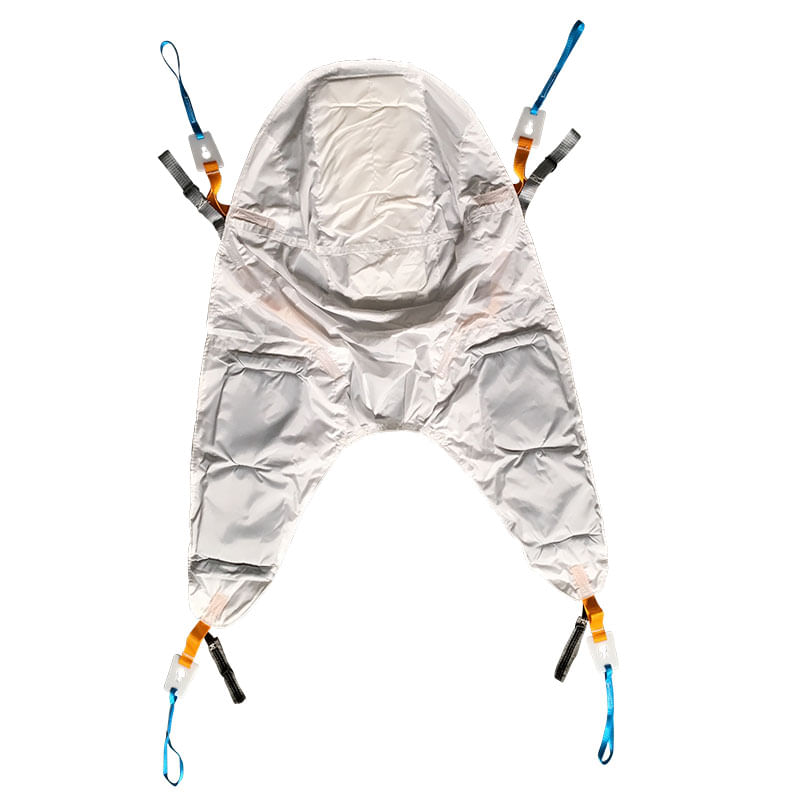

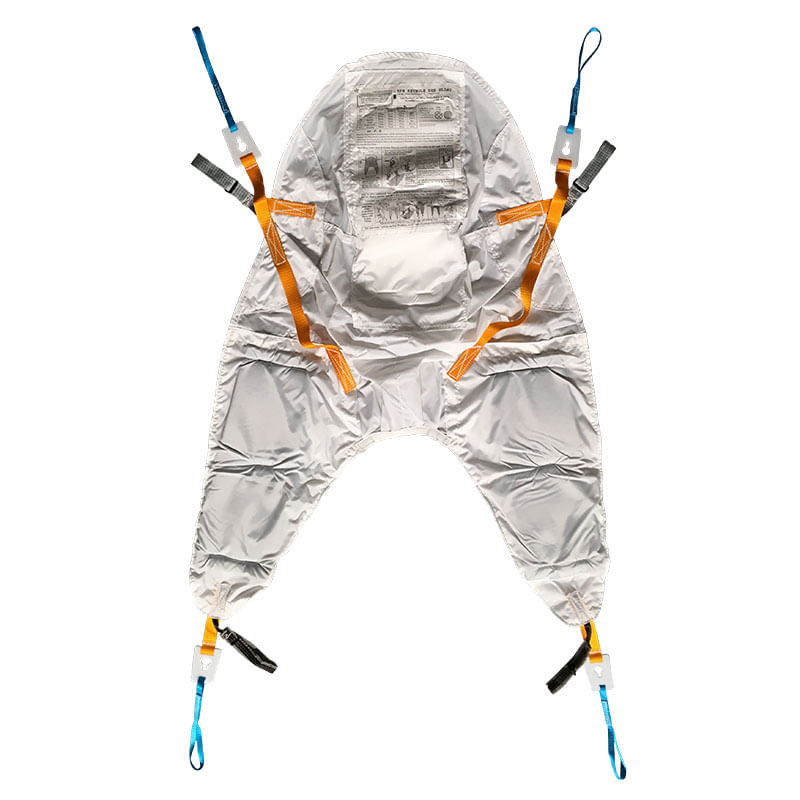

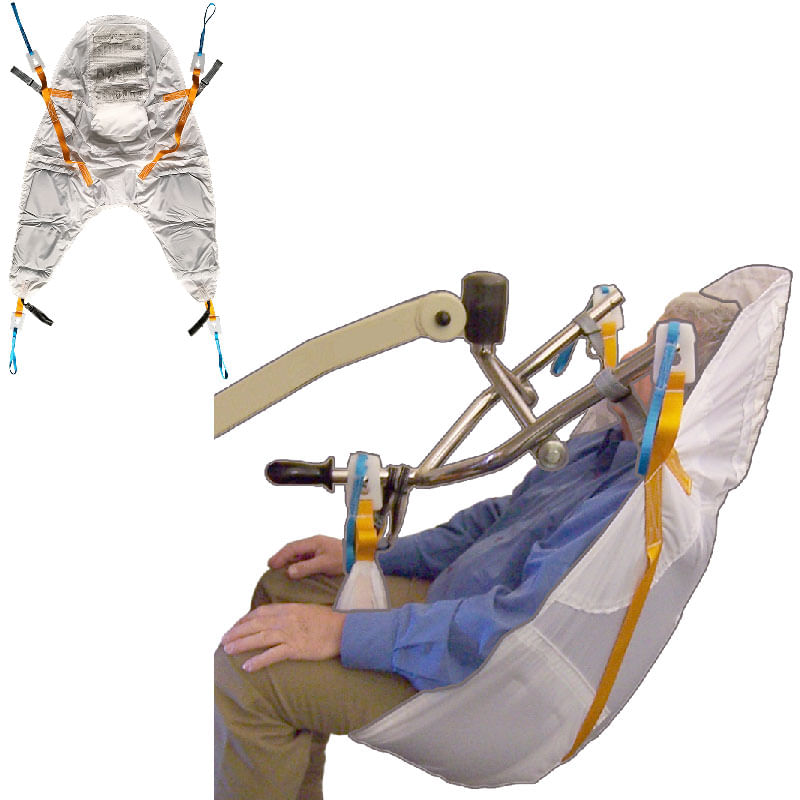

The RPH Keyhole Dex Sling is a full body keyhole plate Sling designed for optimal support and safety. It features head support with split leg sections for easier fitting. This Sling is equipped with keyhole plates that attach to Tilt Frame Hoists, ensuring secure usage. We incorporate special Safety Straps with our Keyhole Plate Slings as an extra safety measure to prevent accidents.

Key Features

• Full body keyhole plate Sling
• Split legs
• Built-in Keyhole Plate Safety Straps

Additional Information

This Sling comes with keyhole plates to fit onto Tilt Frame Hoists that have mushroom studs to attach the Keyhole Plates to. Special sizes can be made on request.

Specifications

Safe Working Load: 220kg / 485lbs (In accordance with ISO 10535:2011)
ARTG: 99879
GMDN: 40535
Attachment Method: Keyhole plate tilt frame hoist
Sizes:

Item #	Size	Height	Shoulder Width	Hip Width	Webbing Colour
771X	Extra Small	73cm / 28.5"	42cm / 16.5"	63cm / 25"	Brown
771	Small	82cm / 28.5"	58cm / 23"	77cm / 30"	Red
773	Medium	90cm / 35.5"	66cm / 26"	83cm / 32.5"	Yellow
770	Large	90cm / 35.5"	86cm / 34"	94cm / 35.5"	Green
772	Extra Large	106cm / 41.5"	94cm / 37"	114cm / 45"	Blue
772B	Bariatric	105cm / 41.3"	102cm / 40"	118cm / 46.5"	Black

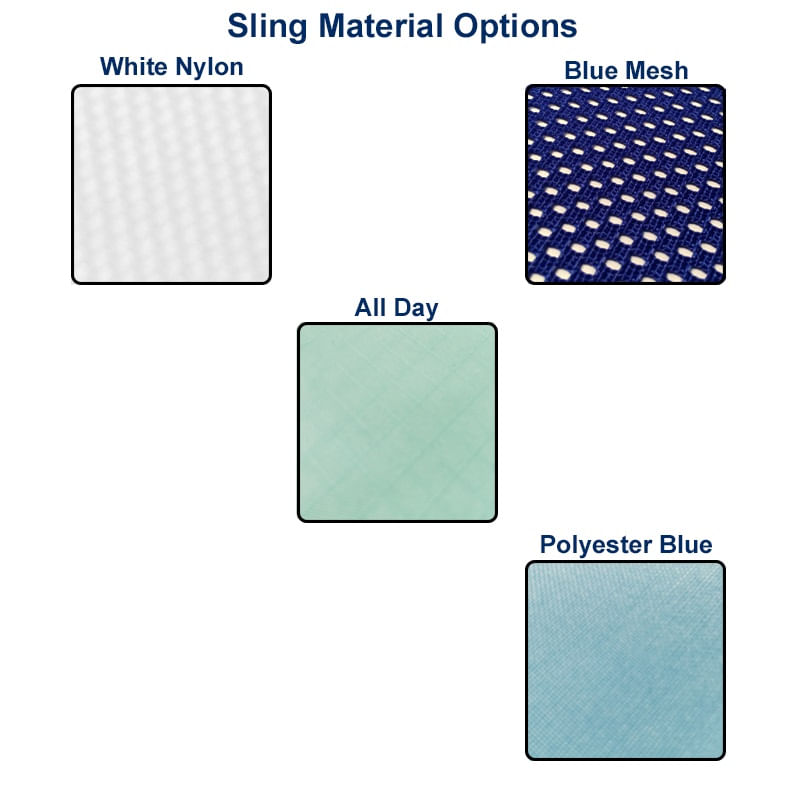

Materials Available:

Material	Photo	Type	Notes
Standard White		Nylon	This is called a solid material, as it is not a Mesh or Netting material that has holes in the material. The Nylon has some slipperiness, to make it easier to slide down behind a patient's back, when they are sitting in a chair.
Blue Mesh		Polyester	This is a soft and comfortable Mesh with small holes. The holes can be cooler for the patient. Sometimes this material will be used for showering or in a bath.
Polyester Blue		Polyester	A comfortable, solid material, like the Nylon material, but not as slippery.
All Day Sling Material		Nylon	A strong, thin material with a Rip Stop thread in the material, to help reduce or prevent ripping. As the material is breathable the Slings can be left under the patients sitting in chairs. This reduces the need to remove the Sling after the patient has been hoisted into a chair, and then replace the Sling to pick them up again.

Please select the most appropriate material and sling design for the patient, but remember, if the patient's condition changes, it may be necessary to use a different material and design of sling.

Cleaning

Wash up to 80°C (176°F). Air or tumble dry on a cool setting, ensuring the drum is cool. Ensure the product is dry before using or storing. We recommend using a Pelican Washing Bag to help contain the straps.

Important

Attaching Brand New Keyhole Plate Slings to a Hoist: View our video guidance.
General Keyhole Plate Sling Information: For general information, including filing down Keyhole Plates which are too tight. This advice is applicable for the version of this product which uses Keyhole Plates.
Warning: Inspect slings before every use. If any damage is found the Sling must be withdrawn from service and repaired, if possible.
Warning: If you are leaving a sling made in the All Day Sling material under a person, always ensure that there will be no adverse pressure care issues. This includes checking that the attachment method (e.g. webbing loops, keyhole plates, etc.), are not positioned in such a way that may hurt the person. The actual material is very thin and it should not cause a pressure problem, but patients' skin integrity should be regularly checked, just in case the sling is causing a pressure problem. If there are any early signs of pressure problems, discontinue using this design of sling.
Disposal: When the Sling is ready for disposal, we suggest the Lifting Straps are cut off, so it cannot be used with another patient.

Unit of Measure

Each

FAQs

Do I need to do Sling inspections?
Yes - see the Important Information tab for more information.
What are the Sling inspection requirements?
See the Important Information tab for more information. We've paraphrased the International Standard 10535:2011 under licence, detailing exactly what is required.
Where can I find the inspection checklists?
We provide the following checklists:

• Sling Inspection Before Use
• 6 Monthly Thorough Sling Inspection
