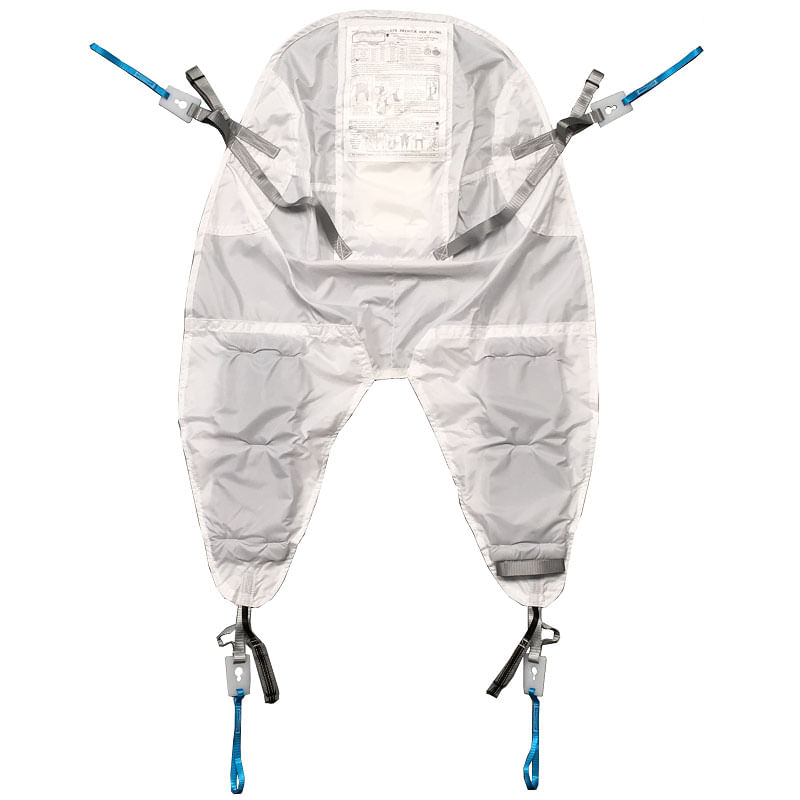

RPH Keyhole Double Amputee Sling

The RPH Keyhole Double Amputee Sling is a full body, padded, split leg Sling with head support. It is designed with keyhole plates to fit onto tilt frame Hoists that have 'mushroom' studs to attach the keyhole plates to. The benefit of the RPH Keyhole Double Amputee Sling is the extra width of the leg section used under the thighs, providing extra support when lifting.

Key Features

• Keyhole Plate attachments for tilt frame hoists
• Built-in Safety Straps
• Small aperture for amputees
• Wide legs for extra support
• Full body with back and head support

Additional Information

A special Leg Loop allows one of the Leg Sections to thread through the Leg Loop to help keep the Leg Sections together when lifting. This Sling has been beneficial to many single and double amputees, but it is important to test the Sling on individual patients to ensure that they will be safely lifted. We incorporate special Safety Straps with our Keyhole Plate Slings as an extra safety measure. These may stop the Patient falling to the floor if a Keyhole Plate comes off the stud or breaks, and can prevent a serious accident.

Specifications

Item #: 770AMP
Safe Working Load (SWL): 220kg / 485lbs (In accordance with ISO 10535:2011)
ARTG: 99879
GMDN: 40535
Attachment Method: Keyhole plates for tilt frame hoists
Size: 1 size. Special sizes made on request.

Materials Available

Material	Photo	Type	Notes
Standard White		Nylon	This is called a solid material, as it is not a Mesh or Netting material that has holes in the material. The Nylon has some slipperiness, to make it easier to slide down behind a patient's back, when they are sitting in a chair.
All Day Sling Material		Nylon	A strong, thin material with a Rip Stop thread in the material, to help reduce or prevent ripping. As the material is breathable the Slings can be left under the patients sitting in chairs. This reduces the need to remove the Sling after the patient has been hoisted into a chair, and then replace the Sling to pick them up again.

Please select the most appropriate material and sling design for the patient, but remember, if the patient's condition changes, it may be necessary to use a different material and design of sling. See the FAQ tab for more information.

Cleaning

Wash up to 80°C (176°F). Air or tumble dry on a cool setting, ensuring the drum is cool. Ensure the product is dry before using or storing. We recommend using a Pelican Washing Bag to help contain the straps.

Important

Attaching Brand New Keyhole Plate Slings to a Hoist: View our video guidance.
General Keyhole Plate Sling Information: For general information, including filing down Keyhole Plates which are too tight. This advice is applicable for the version of this product which uses Keyhole Plates.
Warning: Inspect slings before every use. If any damage is found the Sling must be withdrawn from service and repaired, if possible.
Warning: If you are leaving a sling made in the All Day Sling material under a person, always ensure that there will be no adverse pressure care issues. This includes checking that the attachment method (e.g. webbing loops, keyhole plates, etc.), are not positioned in such a way that may hurt the person. The actual material is very thin and it should not cause a pressure problem, but patients' skin integrity should be regularly checked, just in case the sling is causing a pressure problem. If there are any early signs of pressure problems, discontinue using this design of sling.
Disposal: When the Sling is ready for disposal, we suggest the Lifting Straps are cut off, so it cannot be used with another patient.
Sling & Hoist Compatibility: For more information.
Sling Life Expectancy: For more information.
What the International Standard ISO10535:2011 requires for Period Sling Inspections and Sling Labelling: For more information.
Sling Inspection Before Use Checklist: For more information.
6 Monthly Thorough Sling Inspection Checklist: For more information.
Online Sling Inspection Training: For excellent guidance on how to do inspections, check out this course on the Udemy learning platform. On completion of the course you will receive a certificate, which makes staff education simple. This training is in addition to the training offered by your organisation. The course covers:

• How to do a Sling Inspection Before Use
• How to do a 6 Monthly Thorough Sling Inspection
• What the labeling requirements are
• Example of sling damage
• How to safely mark a sling

Unit of Measure

Each

FAQs

Do I need to do Sling inspections?
Yes - see the Important Information tab for more information.
What are the Sling inspection requirements?
See the Important Information tab for more information. We've paraphrased the International Standard 10535:2011 under licence, detailing exactly what is required.
Where can I find the inspection checklists? See the Important Information tab for more information. We provide the following checklists:

• Sling Inspection Before Use
• 6 Monthly Thorough Sling Inspection
