Introducing smartCRUTCH, the innovative crutch that's engineered for comfort and ease. Our patented modular design lets you say goodbye to hand pain and fatigue by distributing your weight across your forearm. Plus, it's fully adjustable to fit your needs, seamlessly switching between platform and forearm modes.
Ready to experience the smartCRUTCH difference? Finding the right size and placing your order is a breeze. Simply contact us by phone or email and share your height, weight, and forearm circumference. Our friendly team will be happy to assist you!

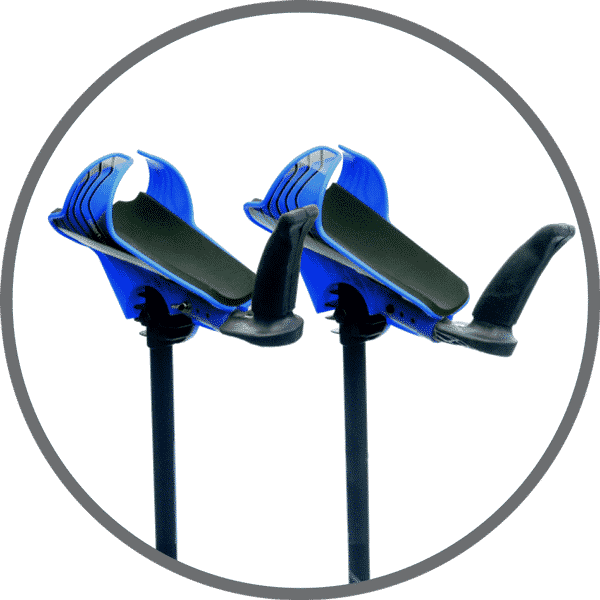

SmartCRUTCH’s patented modular design distributes your body weight over your forearm, releasing pressure and pain from your hands, wrists and shoulders. Fully adjustable, it can be used comfortably as both a platform or forearm crutch.
Specifications |
SMALL |
MEDIUM |
LARGE |
Weight of Single SmartCRUTCH |
1kg |
1kg |
1kg |
Forearm Length Range |
19-23cm |
22-25cm |
24-32cm |
Circumference Range of Cuff |
21-24cm |
28-32cm |
28-32cm |
Height Ranges for user with length of lower leg used at that range |
156-185cm |
166-185cm |
166-185cm |
Elbow Height Range at 20°- 60° Angle Setting |
76-118cm |
86-120cm |
96-126cm |
Elbow Height Range at the 60° – 90° Angle Setting |
72-115cm |
82-116cm |
92-122cm |
User Weight Limit – NON-Weight Bearing Use (used to swing through) |
120kgs |
120kgs |
120kgs |
User Weight Limit – Weight Bearing Use (for Stability & Balance) |
140kgs |
140kgs |
140kgs |
Handle, Grips & Ferrules
Features
- Ergonomically designed grips provide natural wrist angle and even load across palm.
- 15° to 90° forearm platform settings to meet personal comfort and mobility requirements.
- Locking spline allows for secure rotational angle settings.
- 3-point forearm length settings for additional customization.
- 10-position push-pin height adjustment (Range between sizes: 4′ 8″ to 6′ 7″).
- Hourglass-shaped foot design maximizes surface contact.
- Shock absorption built into the design of the specialized ferrule and cuff memory foam.
Benefits
- Transfer of weight to forearm results in less fatigue and injury prevention.
- Less pressure on hands reduces pain, discomfort or blistering.
- Mitigates the potential of pinched or damaged nerves.
- Improves posture and gait resulting in less pain or fatigue.
- Allows freedom of hands while still providing support.
- Easier to navigate while ascending or descending stairs.
- 10 fashion colours to suit personal style.
Instructions
Measurement of height from floor to elbow |
[Image Placeholder] |
Arm measurement length |
[Image Placeholder] |
Compare conventional crutches to smartCRUTCH®
smartCRUTCH® also helps maintain proper posture, relieve stress and minimize fatigue.
Conventional Axillary Crutches
For more than 80 years the conventional underarm (axillary) crutch has been the standard issued walking device for temporary disabilities or injuries in the United States.
Not much has changed since their inception apart from replacing wood construction to lighter weight aluminium in the early 1960’s.
They have certainly served a purpose but their primitive design continues to cause irritation and severe injury to nerves, tendons and soft tissue found in the axilla (armpit).
Also, direct load on the hands and wrists can cause additional joint and nerve damage along with blistering or callusing of the palms.
Forearm Crutches
Forearm crutches are commonly used throughout Europe for both short term and long term use.
They are beginning to gain popularity in the United States and Canada but are mostly used by individuals with long term disabilities.
The forearm crutch design does have some advantages over underarm crutches by eliminating damage to the axilla (armpit) region of the body.
However, their inherent design places direct weight load on the hands and wrists which can cause damage to palms, joints, nerves and tendons with limited use.
smartCRUTCH®
The smartCRUTCH® design incorporates all of the benefits of a forearm style while minimizing or eliminating the compressive forces on the hands and wrists.
It does this by allowing the user to adjust the angle of the forearm platform to reduce or increase the amount of weight load to the hands and wrists.
Transferring this load to the forearm can reduce or potentially eliminate injuries commonly found with the use of standard underarm or forearm crutches as stated above.
smartCRUTCH® also helps maintain proper posture, relieve stress and minimize fatigue setting you up for a safe and speedy recovery.
smartCRUTCH is modular in design, setting new standards in mobility.
