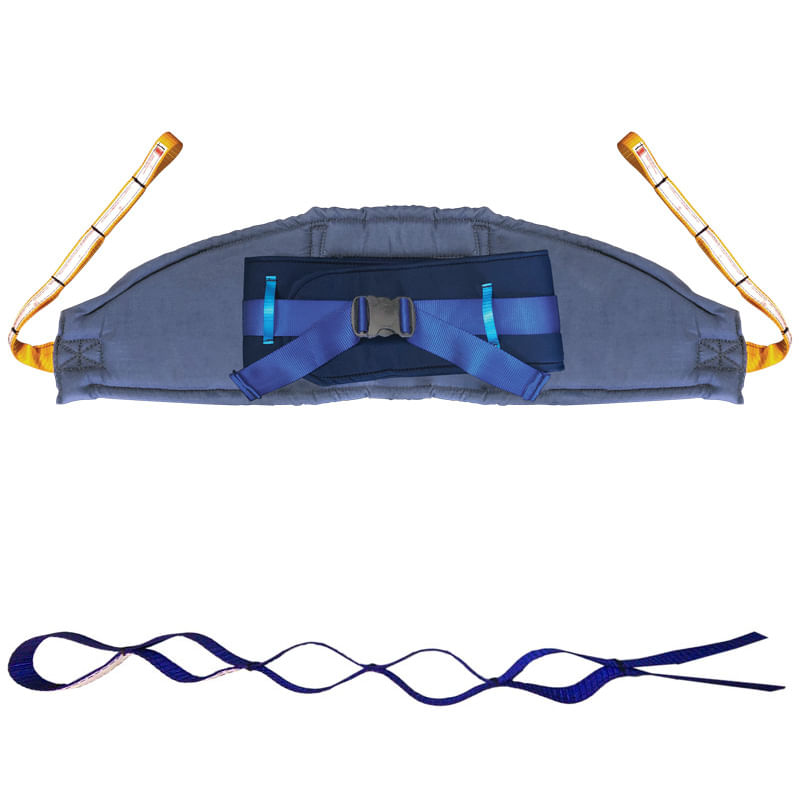

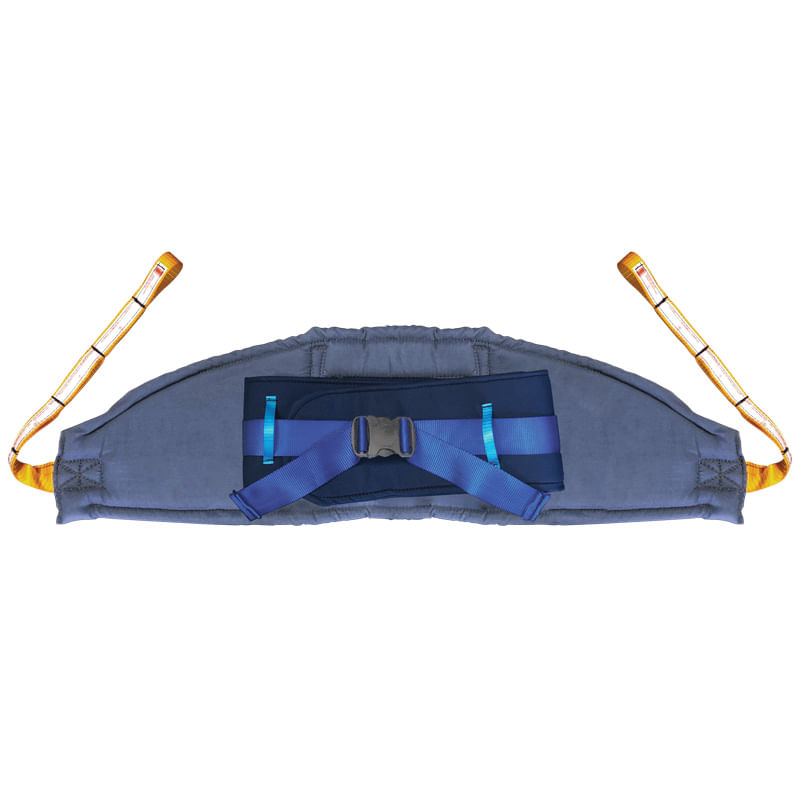

Stand Up Sling with Buckle Belt

The Stand Up Sling with Buckle Belt is designed with fully padded features, including soft padding under the arms and a 50mm wide padded buckle belt. This sling allows for easy adjustments on both sides of the buckle, making it convenient for users without the hassle of Hook & Loop Tape. It is compatible with various manufacturers' Stand Up Hoists, ensuring versatility in use.

Key Features

• Fully padded, including soft padding under the arms, with a 50mm wide padded buckle belt that has extra padding under the belt
• Various attachments
• Built-in Keyhole Plate Safety Straps (Applicable for the version of this product which uses Keyhole Plates*)

Additional Information

When using a Stand Up Sling with Buckle Belt, the Patient's shape can alter between sitting and standing. The design reduces the risk of riding up under the arms, which can be painful for some patients, especially those with arm or shoulder issues. Some patients may also use this sling upside down, as the high back section assists in lifting the buttocks.

When ordering, select the correct attachment method:

• Webbing Loops
• Keyhole Plates

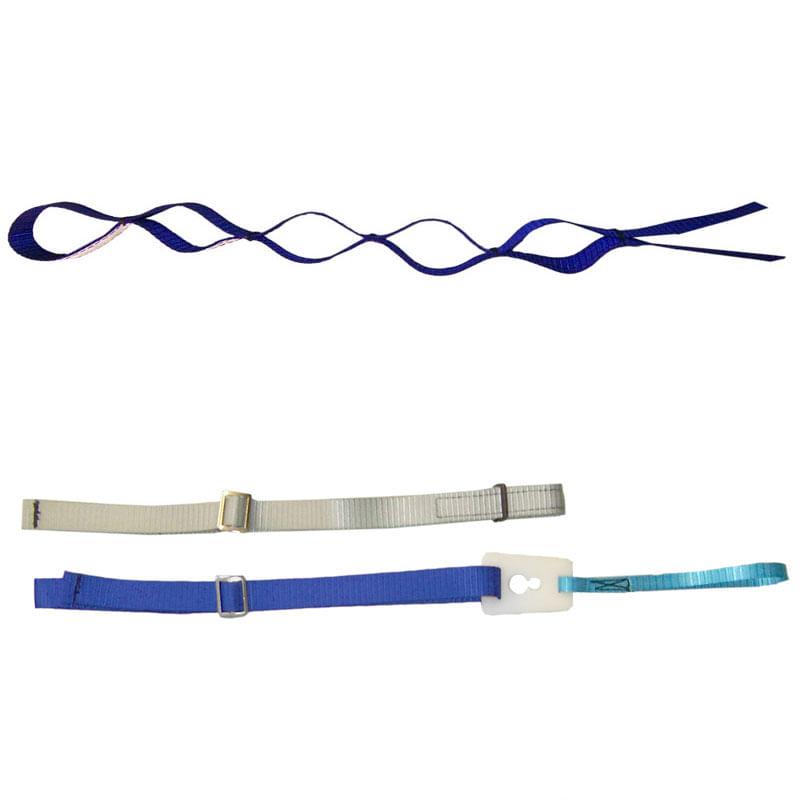

Special Safety Straps are incorporated with our Keyhole Plate Slings as an extra safety measure. These may stop the Patient from falling to the floor if a Keyhole Plate comes off the stud or breaks, preventing serious accidents.

Specifications

Safe Working Load: 200kg / 440lbs (In accordance with ISO 10535:2011)
ARTG: 99879
GMDN: 40535
Attachment Method: Metal hook coathanger type hoists, keyhole plates, rope and balls.
Sizes:

Item #	Size	Chest Size (cm)	Chest Size (inches)
537BBS	Small	60cm - 90cm	23.5" - 35.5"
537BBM	Medium	85cm - 115cm	33.5" - 45"
537BBL	Large	110cm - 130cm	43" - 51"
537BBXL	Extra Large	120cm - 150cm	47" - 59"

Special sizes made on request. Materials Available: Polyester on the outside, Velour on the inside.

Material	Photo	Type	Notes
Polyester Blue		Polyester	A comfortable, solid material, like the Nylon material, but not as slippery.

See the FAQ tab for more information.

Cleaning

Hand or machine wash up to 80°C. Cool tumble dry or air dry in shade. We recommend using a Pelican Washing Bag, Item 205 to help prevent the webbing from getting caught in some washing machines and to give a longer life to the material. Ensure the Sling is completely dry before use or storing. Store in shade away from direct sunlight. If defective, withdraw from use and contact Pelican.

Warning: Excessive chlorine/bleach can damage any material, including Sling material. Slings should be continuously inspected for deterioration and discolouration, as this may be an early warning of possible failure. Fabric softener may also damage the fabric.

Important

General Manual Handling Warning: Manual Handling products are designed to assist carers to help patients. They will not make the carer stronger or fitter, but with correct training and use of the products, should make manual handling easier and safer for both staff and patients. When training, practise with an able-bodied colleague. If any procedure is not comfortable or is difficult and puts the carer or patient in a dangerous position, the participants should call out to stop the manoeuvre, recover and recommence. Never jeopardise your health by straining, twisting or being incorrectly positioned when manual handling. Always select the most appropriate equipment for the patient’s current condition and if in doubt, use mechanical equipment. Ask your Manual Handling adviser for individual guidance.

Correct Buckle Threading: It is vital that the buckles on this product are correctly fitted. Contact us if you need to order a replacement buckle if one is broken.

Warning: Inspect Slings before every use. If any damage is found the Sling must be withdrawn from service and repaired, if possible.

Disposal: When the Sling is ready for disposal, we suggest the Lifting Straps are cut off, so it cannot be used with another patient.

Unit of Measure

Each

FAQs

Do I need to do Sling inspections?
Yes - see the Important Information tab for more information.

What are the Sling inspection requirements?
See the Important Information tab for more information. We've paraphrased the International Standard 10535:2011 under licence, detailing exactly what is required.

Where can I find the inspection checklists?
See the Important Information tab for more information. We provide the following checklists:

• Sling Inspection Before Use
• 6 Monthly Thorough Sling Inspection
